Vatrer 12V 100Ah Group 24 Lithium Battery, 100A BMS Low Temp LiFePO4 Battery EU
●1,280Wh of high energy and 1,280W of powerful output, ensuring ample power for your needs.
●300A/5S peak discharge current, robust enough to handle significant power surges.

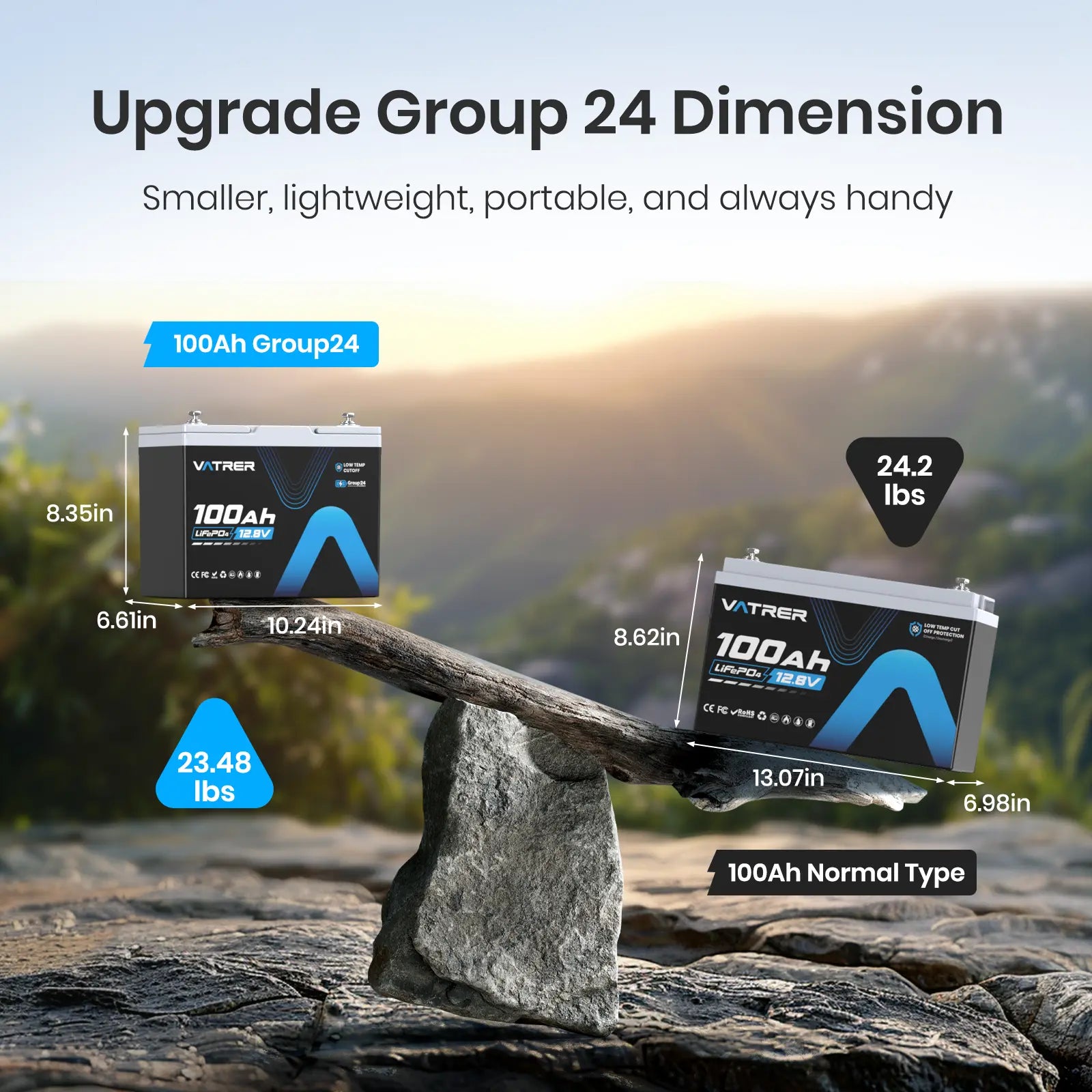

●Group 24 battery size, compact at 75% the size yet delivering 200% the energy of a 12V 100Ah Lead-Acid battery.
●Expandable up to 20.48kWh (Max 4P4S), offering scalable energy solutions.
●10X charging efficiency and 2X runtime compared to standard lead-acid batteries, for enhanced performance and convenience.
●Low TCO (total cost of ownership) at only 0.1$/kWh, making it an economical choice.
●EV Grade LiFePO4 Cells, with 5000+ cycles@100%DOD, for long-lasting and reliable energy.
●Low-temperature cutoff protection, safeguarding your battery in cold conditions.

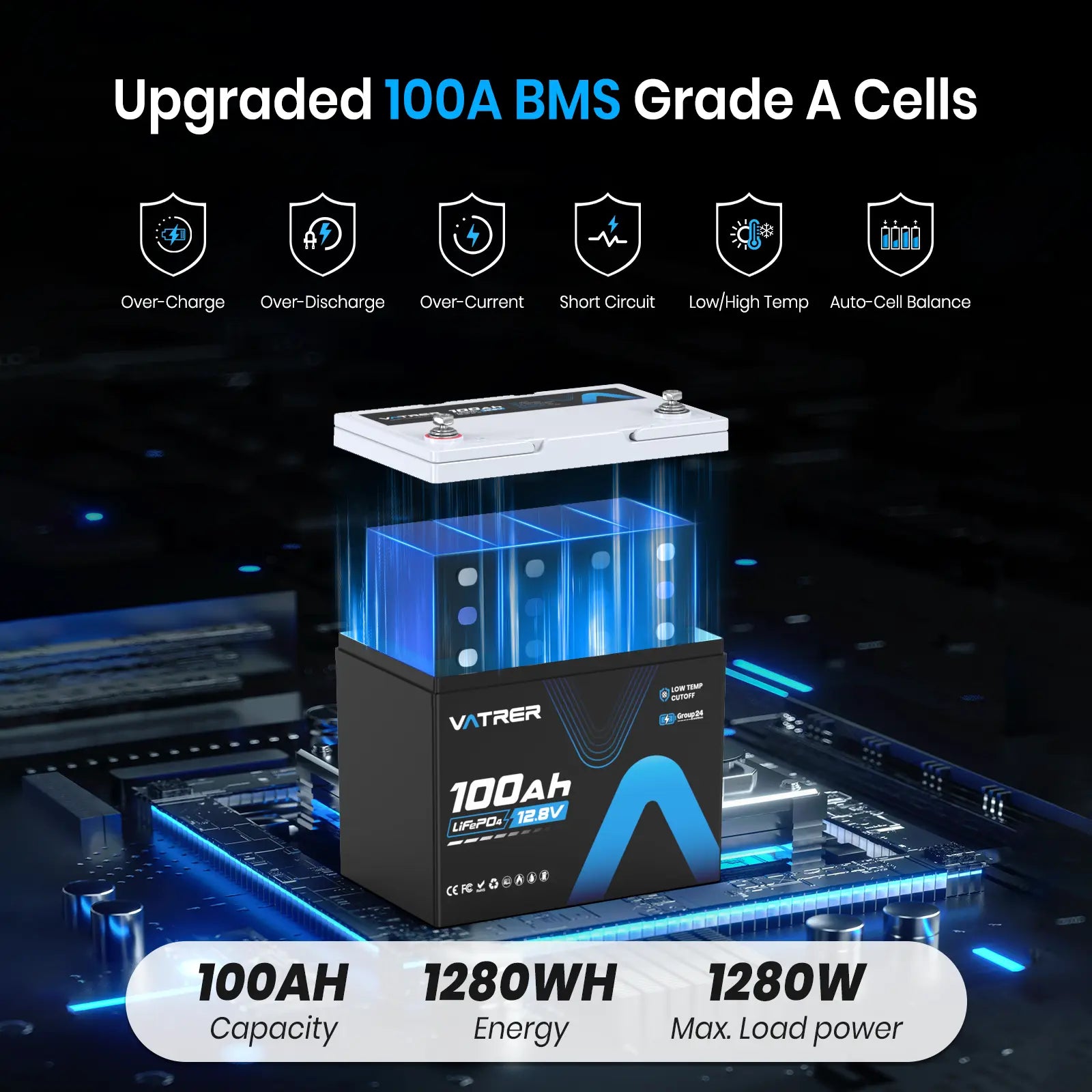

●100A BMS, providing comprehensive protections and warnings to ensure battery safety and longevity.
●Automatic Overload Protection & Recovery, requiring no user intervention for seamless operation.
●Ideal for RVs, camping, trolling motors (30~70lb), solar, off-grid, and home storage applications.
●NOTE: Not suitable for use as a starter battery.
Safety Certifications
Vatrer 12V 100Ah Group 24 Battery: Powerful and Long-lasting Performance
The Vatrer 12V 100Ah Group 24 Lithium Battery is a high-performance battery that provides long-lasting power and durability for a wide range of applications. With its advanced LiFePO4 chemistry, built-in BMS, and low self-discharge rate, this battery is ideal for RVs, solar systems, marine applications, and more.
Comprehensive Protection and High Performance
Experience unmatched reliability and efficiency with the Vatrer Group 24 Deep Cycle Battery, featuring a built-in 100A BMS for full protection against overcharge, discharge, and temperature extremes. This battery offers a robust 100A continuous and 300A peak discharge, ensuring optimal performance under demanding conditions. Ideal for high-demand applications, it delivers both safety and durability.

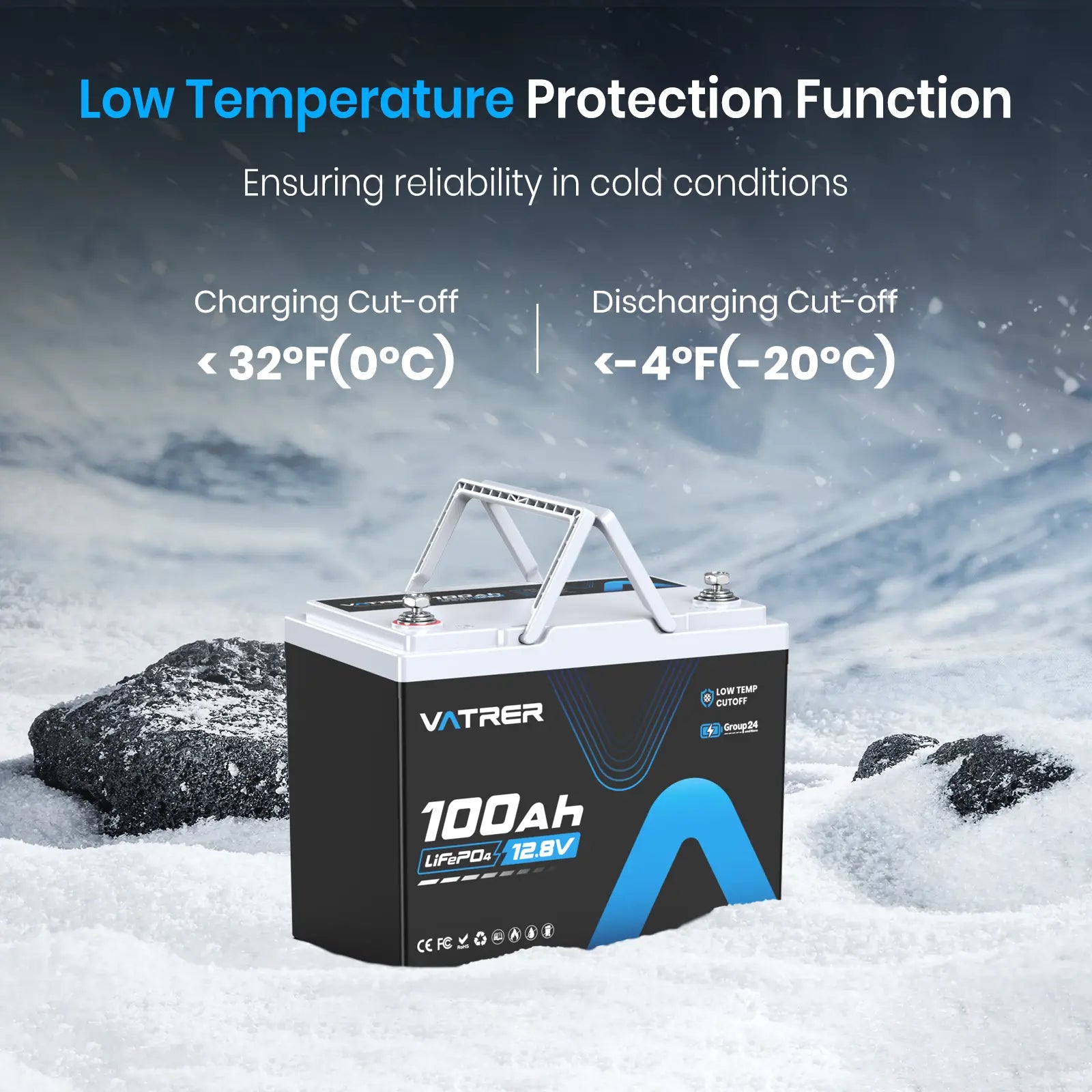

Low Temperature Cut-Off Protection for Vatrer Group 24 Battery
Ensure optimal performance and longevity of your Vatrer Group 24 Battery with advanced low temperature cut-off protection. Charging is enabled above 32°F (0°C) and automatically disabled below 32°F (0°C) to prevent potential damage. Charging resumes above 41°F (5°C), safeguarding your battery in cold conditions.
High Capacity and Power Configuration
The Vatrer Group 24 Battery supports versatile configurations, including 4P4S up to a 20.48kW load power. With a maximum of 4 batteries in series and up to 10 in parallel, it delivers a substantial 20.48kWh of energy and 20.48kW of power, making it ideal for high-demand applications.
Versatile Charging Solutions
Versatile Power Solutions for All Applications
| Specification | Value |
|---|---|
| Battery Model | LiFePO4 Battery 12.8V 100Ah |
| Nominal Voltage | 12.8V |
| Capacity | 100Ah |
| Charge Voltage | 14.2V-14.6V |
| Weight | 10.5KG/23.14LB |
| Energy | 1280Wh |
| Max Continuous Charging Current | 100A |
| Max Continuous Discharging Current | 100A |
| Recommended Charge Current | 20A (0.2C) |
| Max Load/Inverter Power | 1280W |
| Operating Temperature Range | Charge: 0°C to 50°C (32°F to 122°F) Discharge: -20°C to 60°C (-4°F to 140°F) Storage: -10°C to 50°C (14°F to 122°F) Low temp cut off protection (Charge): 0°C±4°C (32°F±7.2°F) Low temp cut off protection (Discharge): -20°C±4°C (-4°F±7.2°F) |
| Waterproof Class | IP65 |
| Terminal Type | M8 |

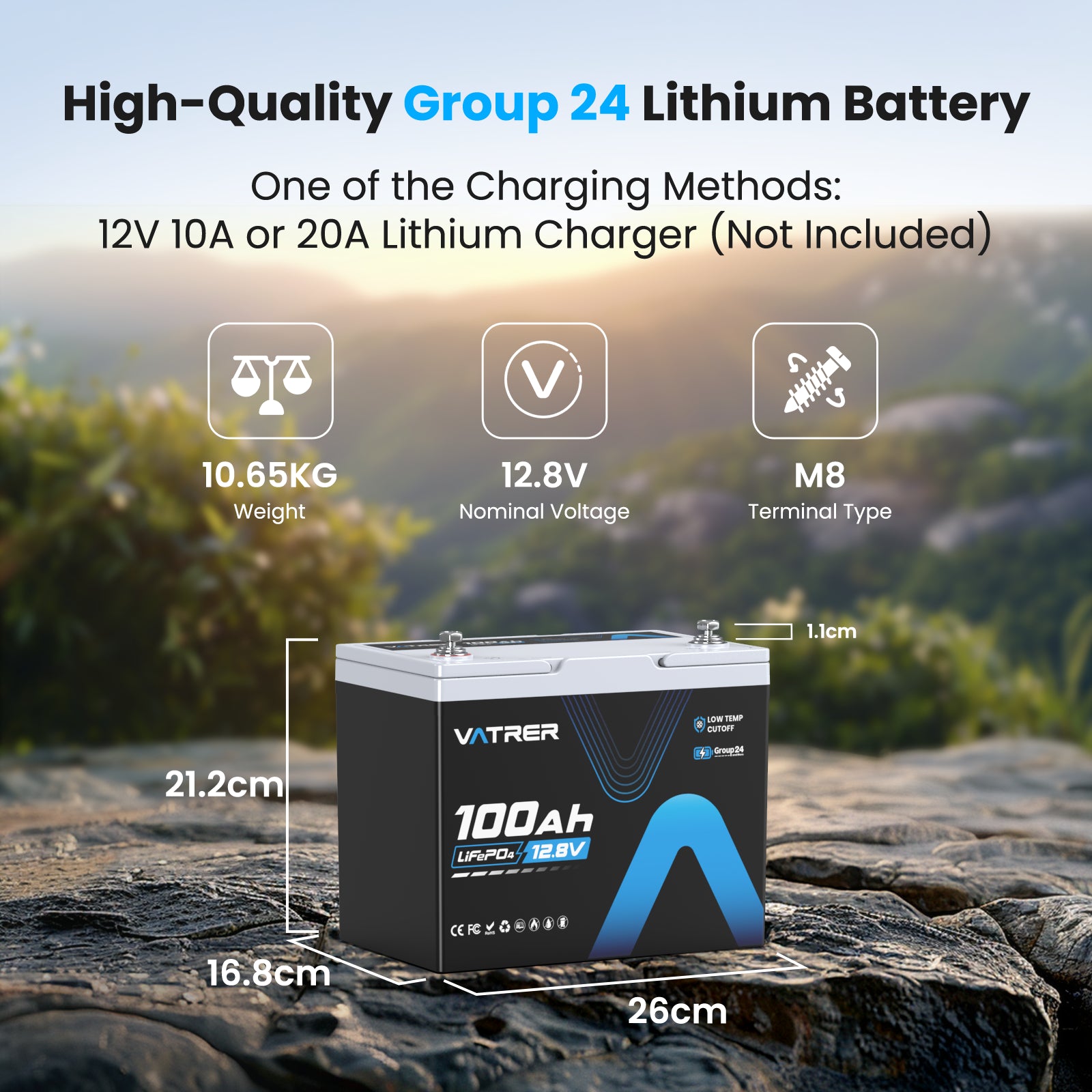

| Dimensions | 260x167x209 mm / 10.24*6.61*8.23 inch |
| Cycle Life | >=5000 Cycles |
| Series/Parallel Connections | 4 in Series, and no more than 10PCS in Parallel |
Yes, of course! Our BMS has a low temperature protection cut-off function to safeguard your battery against low temperature damage and extend its lifespan.
Low temp cut off protection (Charge): 0℃ ± 4℃ (32°F ± 7.2°F)
Low temp cut off protection (Discharge): -20℃ ± 4℃ (-4°F ± 7.2°F)
We recommend using a lithium iron phosphate 4-string (14.6V) charger to efficiently charge the battery. However, there are alternative methods:
Scheme 2: You can charge the battery using photovoltaic solar panels through an MPPT charger.
Scheme 3: You can charge the battery pack using an inverter with a built-in AC to DC charging function.
A BMS, or Battery Management System, is a vital component of our LiFePO4 battery. It performs several functions:
a. It safeguards the battery and the user by shutting off the battery in cases of low or high voltage, low or high temperatures, and system shorts.
b. Our BMS maintains cell balance within the battery pack. During each charge cycle, it reduces the charging rate in cells that have reached their capacity, allowing other cells to catch up. This ensures overall balance, quality, and efficiency of the battery pack.
Our LiFePO4 batteries provide over 2000 cycles at 100% depth of discharge (DoD), and they can even reach over 5000 cycles at 80% DoD. Compared to standard lead-acid batteries, LiFePO4 batteries have a service life that is 8 to 10 times longer.
Yes, our LiFePO4 batteries are designed with safety in mind:
- Manufactured with Automotive Grade LiFePO4 Cells for higher energy density, stability, and power.
- The stable chemical structure of LiFePO4 ensures they do not burn or explode, even under high temperatures, short circuits, impacts, or drops.
- Our batteries have undergone UL Testing and are certified for their safety.
- They are environmentally friendly, containing no heavy metals or rare metals.
- The built-in Battery Management System (BMS) provides protection against overcharge, deep discharge, overload, overheating, short circuits, and low self-discharge rate.
We apologize, but our LiFePO4 batteries are not suitable for jump-starting vehicles. However, they can serve as reliable power supplies for automobiles. You can recharge your car using a Jackery power supply cord, which is available for separate purchase.
A Group 24 battery refers to a specific size and type of automotive battery. It is a standardized battery size commonly used in various applications, including marine, recreational vehicles (RVs), and automotive vehicles. Group 24 batteries typically have dimensions of approximately 10.25 inches in length, 6.75 inches in width, and 9.25 inches in height. They are known for their medium to high capacity and are often chosen for their balance between power output and size. Group 24 batteries are labeled with a code that helps identify their size and compatibility with specific vehicles or equipment.
